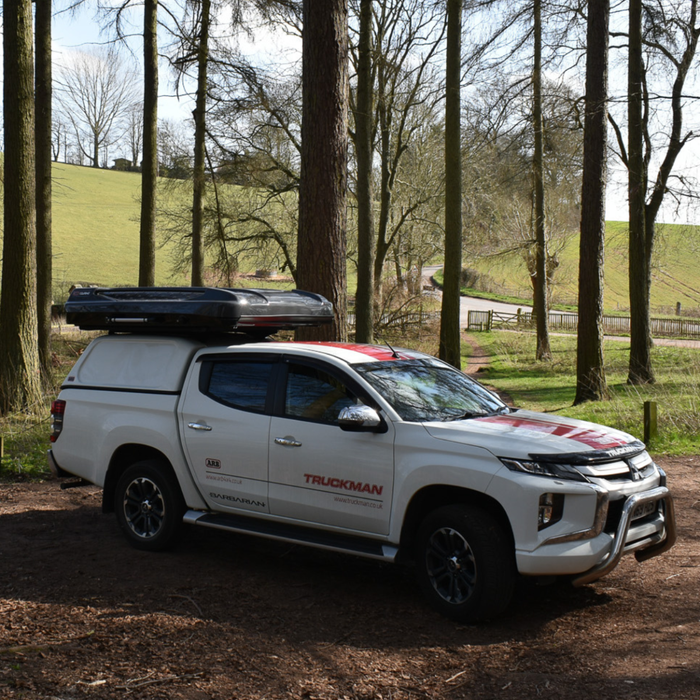

Introducing the Altitude, ARB’s next level of luxury touring in a rooftop tent. Drawing on almost 50 years of engineering knowledge, manufacturing experience and thousands of kilometres of rigorous testing; The ARB Altitude Tent enables off grid living with convenience, comfort and safety by automating set up & pack down.
Overview
The Altitude draws its name from its position our range of tents – right at the very top!
Conceptualised years ago, the idea was to have a tent that would set itself up, and pack itself down at the touch of a button. No fuss, no interaction, and premium in finish; it’s all about the finer details with the Altitude. Although simple in ideology, bringing this to reality would be a tough task for the ARB specialised Engineering Team.
The Great British Weather
Designed with drainage points in each corner of the base, the Altitude ensures that during heavy rainfall the Altitude tent won’t carry water in the shell. Grommets have been installed in each corner to block the drainage holes when closed, preventing dust ingress whilst on the move. To prevent potential wind-drag and road noise, a wind deflector has been designed for the front of the Altitude.
Features & Benefits
Completely automated operation powered by 2x quality ARB electronic actuators on each side.
Raising and lowering is made possible through the engineered steel scissor mechanism.
Simple push button operation: with a single touch to start, the tent opens and closes all on its own.
Actuator & tent control unit internalised for long term durability and protection from the elements.
Lighting and tent controls easily & externally accessible from both sides.
Robust & lightweight aluminium construction with 102kg / 225lbs ladder weight rating.
Premium hand rails for ease of access & safety which fold for compact storage.
Full sized steps (Each rung: 360x175mm) which angle to remain flat underfoot when attached.
3 stage adjustment to suit varying roof heights and adjustable feet to suit vehicle heights 1735mm – 2110mm.
Under rail recessed dual temperature LED lighting (White/Amber) ideal for illuminating the ladder at night or ambient campsite lighting.
Innovative internal storage solution houses the ladder within the top shell of the tent.
Full sized double bed (1370x1870mm) made from 70mm thick, comfortable dual density foam mattress.
17mm honeycomb base core for strength and insulation.
Huge 1180mm high internal height for spacious lounging and easy changing.
Moulded headliner provides premium feel whilst separating interior from ladder storage and offering additional insulation.
Deep roof cavities fitted with storage nets provide great clothes storage in use or package pillows when closing.
Water drainage holes in each external shell corner, designed and tested for use in 4 seasons.
Drain holes covered automatically during in transit combatting dust ingress.
Weatherproof external zippers.
Integrated front wind deflector.
Specifications

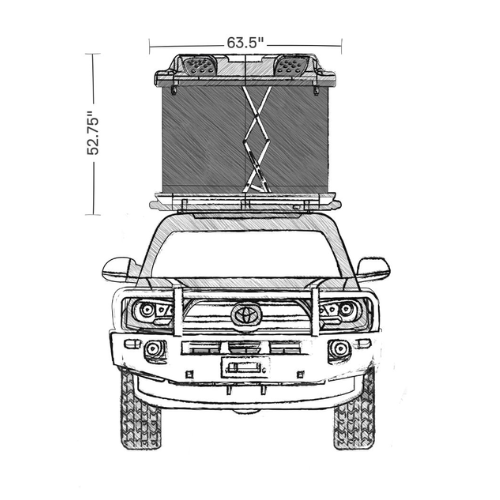

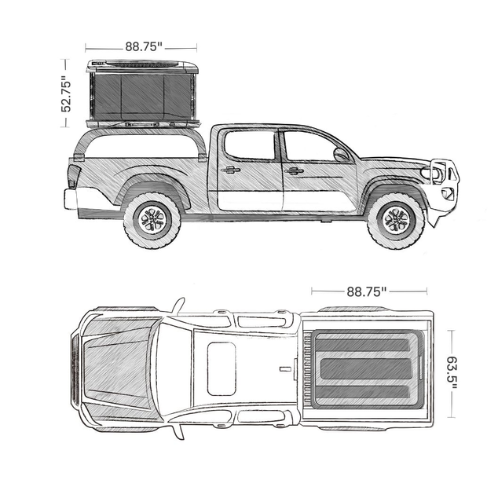

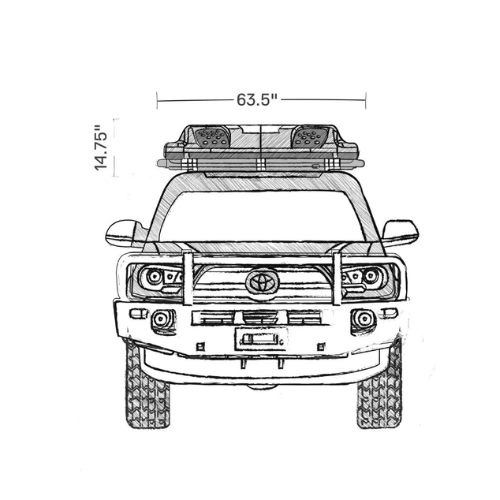

Open Dimensions: 88.7 in (L) x 63.5 in (W) x 52.7 in (H)
Frame: Aluminum
Mounted Weight: 105kg
Material: Exterior Shell: Fiberglass; Tent Fabric: 380GSM Poly Cotton Canvas
Windows: 3 windows, 1 x door entry, 1 x skylight and an all-weather ventilation port
Mattress: 2.7 in Dual Density Foam
Tear Down Time: 2 to 3 minutes
Total Automation & Shell Design
Push-Button Activated
With a single touch, users can effortlessly initiate the opening or closing of the tent. This process can be completed in under two minutes.
Smartfold™ Hinge Technology
Patented ARB SmartFold™ hinge technology ensures effortless hands-free packing of the tent, making setup and takedown quick and easy, every time.
Electronic Actuators
The Altitude Tent offers a completely automated experience, easily raising and closing via a tried and tested scissor mechanism.
Sleek Fiberglass Shell
The sleek, purposeful contours of the durable fiberglass shell are designed to seamlessly blend with the look of popular vehicles.

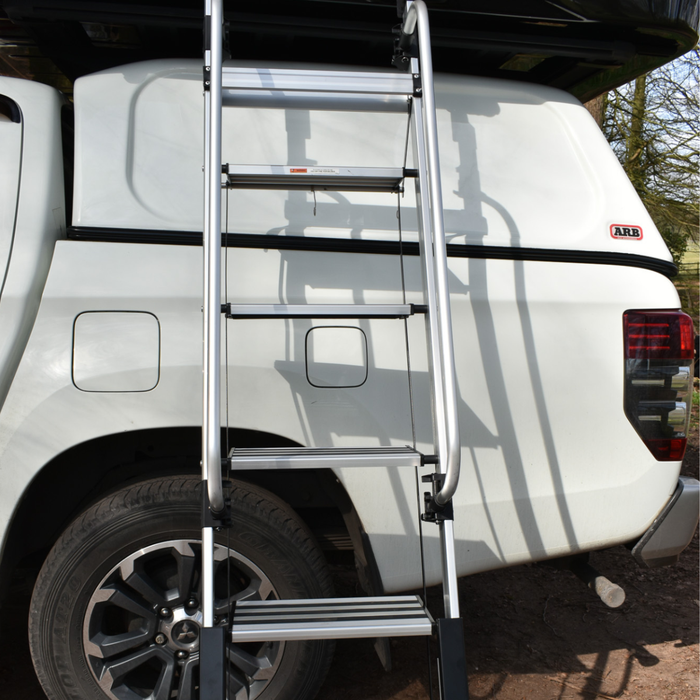

Premium Ladder
Sturdy Handrail
The Altitude Tent is the only tent of its kind, featuring a sturdy handrail for easier access, offering unmatched comfort, convenience, and safety for every adventure.

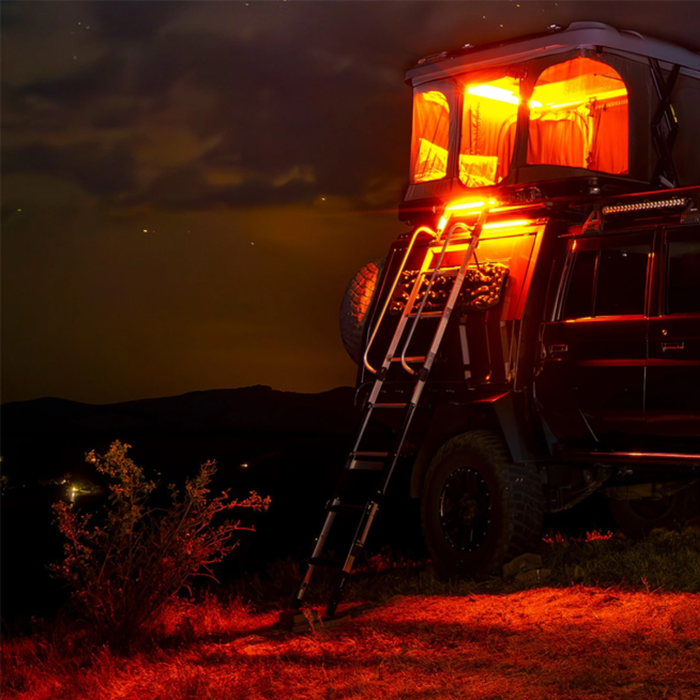

Mount With Lighting
The mount has a built-in downlight that emits both amber and white light, illuminating the steps for better visibility and safety, especially during nighttime use.
Height Adjustable
The ladder’s bottom can be extended to provide extra height for taller vehicles, ensuring easy access even for high-clearance 4x4s and trucks.
Internally Stored
The tent’s ladder is stored internally in the roof, freeing up valuable cargo space and keeping it safe from external damage and wear.

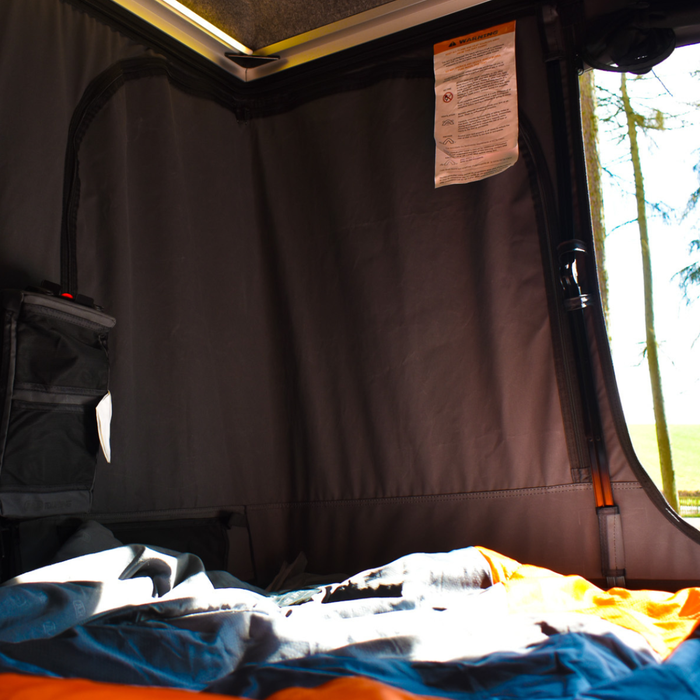

Interior
2.7" Thick Mattress
This high-end tent is designed for your comfort and includes a 2.7” thick mattress, providing excellent support for a good night’s sleep, no matter the conditions.

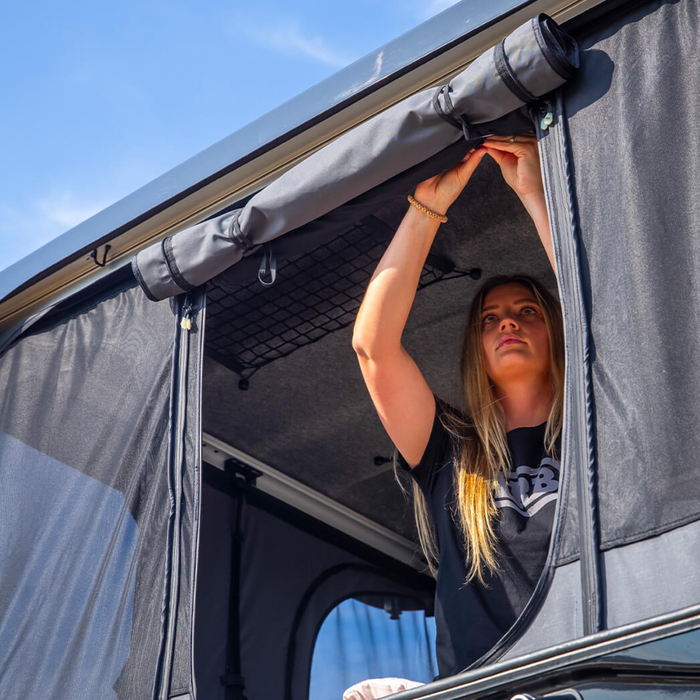

Bedding Storage
The Altitude Tent's roof liner has been molded to accommodate heavy-duty blankets and pillows, allowing it to be packed with bedding inside.
Storage
The Altitude Tent canvas includes sewn-in pockets, such as drink bottle, phone, and accessory pockets at each corner, as well as cargo net pockets for storage when not use.

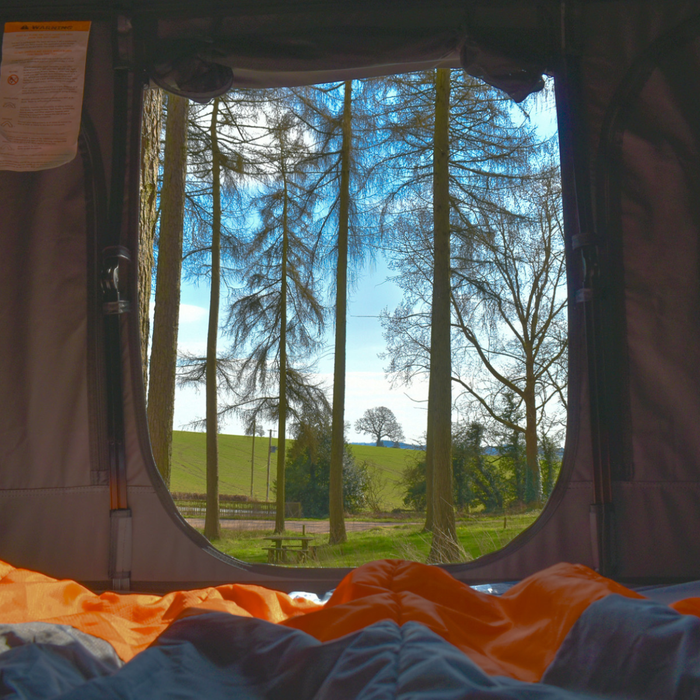

Panoramic Views
Unzipping each corner and door provides a 360-degree panoramic view, allowing a complete visual of the outdoors, perfect for stargazing or observing your surroundings.
Roof Storage & Mounting
Aluminium Roof Rails
The Altitude Tent has built-in roof rails with integrated T-slot mounting channels for a range of accessories, making it easy to customise for your specific needs.
Bar & Rack Compatible
The Altitude can also accommodate a crossbar kit, which expands options for carrying accessories and cargo, further enhancing its versatility for your adventures.
Dynamic Load Rating
Rated at 20kg, the electronic raising and closing functionality is maintained, even with a load mounted, ensuring seamless operation and stability during use.
Bracket Clamp System
Included with the tent is a bracket clamp system that will work with most roof racks, including BASE Rack, providing a secure and stable attachment for your tent.
